How a Customized Tube Mill Line Is Manufactured

Tube mill quality is built through controlled engineering, machining, tooling, assembly and testing. This factory process shows how Zhongyue moves a confirmed project from raw material preparation to shipment.

Manufacturing Capability

A connected production process, not isolated machines

The mechanical, electrical and tooling sections need to work together as a complete welded pipe production line.

Zhongyue reviews the buyer's product range, line configuration and workshop conditions before manufacturing begins. The confirmed information guides machining, roll tooling, assembly, testing and delivery preparation.

View tube mill projects and deliveries
Zhongyue tube mill factory precision machining workshop
Since 1994 Manufacturing Roots
150+ Sets Annual Production Capacity
50+ Countries & Regions Served
RMB 20 Million Registered Capital
10 Manufacturing Steps

From raw material preparation to overseas shipment

Each step controls a different source of risk, from part accuracy and line alignment to operation, transport and installation readiness.

  1. Raw Material Preparation

    Steel plate, structural material and purchased components are checked against the confirmed drawings and equipment list. Early material control helps prevent dimensional or grade mismatches from reaching machining and assembly.

  2. Precision Machining

    Frames, shafts, housings and other mechanical parts are machined to the dimensions required by the tube mill design. Machining accuracy affects stand alignment, transmission stability and long-term dimensional control.

  3. Roll Tooling Processing

    Forming, welding and sizing rolls are processed according to the buyer's tube range, material and forming route. Controlled roll profiles help reduce adjustment time and support stable strip forming.

  4. Machine Frame Assembly

    Mill stands, bases, gearboxes, shafts and transmission parts are assembled and aligned as mechanical sections. Alignment checks are important for load distribution, roll position and reliable operation.

  5. Electrical & Automation Assembly

    Drive systems, control cabinets, sensors, operator interfaces and safety circuits are installed for the agreed configuration. The team checks interfaces between mechanical sections and the electrical control system.

  6. Complete Line Assembly

    The major sections are connected in production sequence to confirm layout direction, interfaces and maintenance access. Reviewing the line as one system reduces avoidable changes during overseas installation.

  7. Trial Running

    Mechanical movement, drive response, controls and section coordination are tested before delivery. Any issues found during trial running can be corrected while the equipment is still in the workshop.

  8. Factory Acceptance Test

    The confirmed inspection scope is reviewed with the project requirements before shipment. FAT records give the buyer a practical checkpoint for configuration, operation and delivery readiness.

  9. Packing & Container Loading

    Equipment is identified, protected and arranged for the planned container type and loading sequence. Clear packing and loading control helps reduce transport damage and supports efficient unloading on site.

  10. Shipment

    Shipping documents, packing information and project handover materials are prepared for dispatch. Installation planning and technical communication continue as the equipment moves to the customer's factory.

Real Workshop Photos

Tube mill equipment under assembly and inspection

These factory photographs show different forming, welding, sizing and testing sections prepared for customized welded pipe production projects.

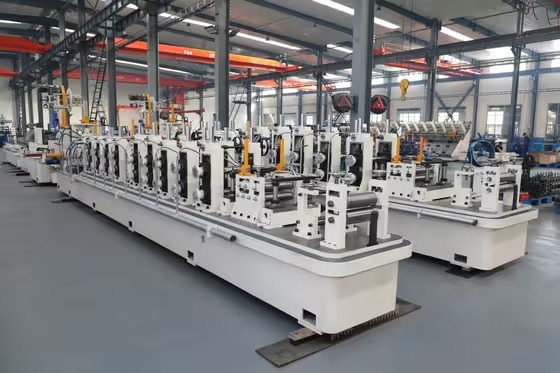

Precision tube mill line assembled in the Zhongyue manufacturing workshop
Precision tube mill sections assembled on a common machine base for alignment and inspection.

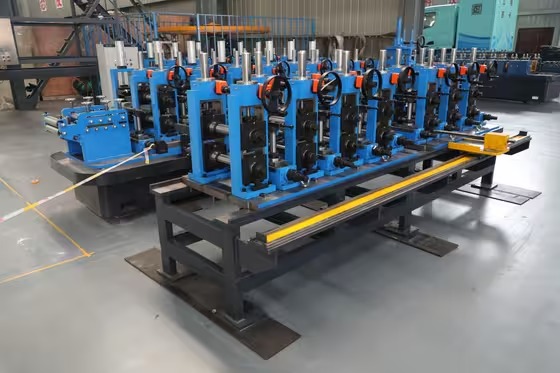

Blue construction tube mill forming section in the Zhongyue workshop
A construction tube mill forming section prepared for line integration and trial adjustment.

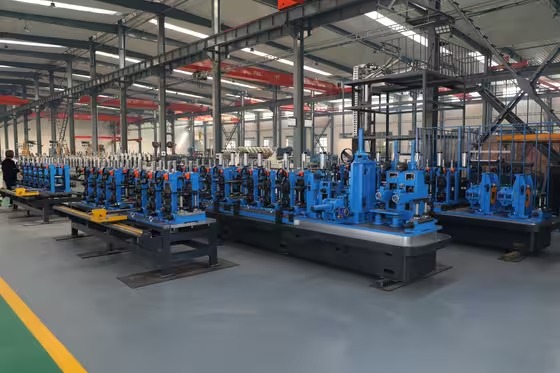

ERW tube production line under assembly in the factory workshop
Multiple ERW tube mill sections arranged in the workshop before final line testing.

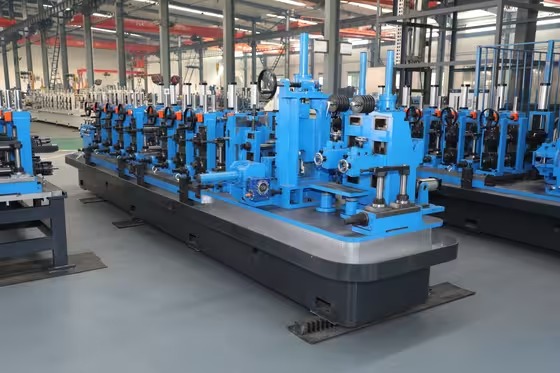

Heavy-duty ERW tube mill forming and welding section
Heavy-duty forming and welding equipment built around the confirmed pipe range and material plan.

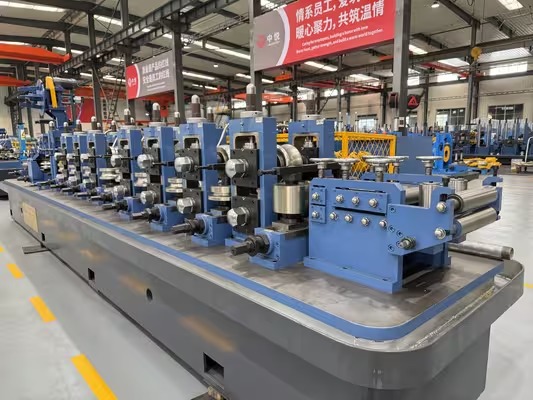

High-frequency welded tube mill forming stands and strip guide equipment
Forming stands and strip guidance components prepared for high-frequency welded tube production.

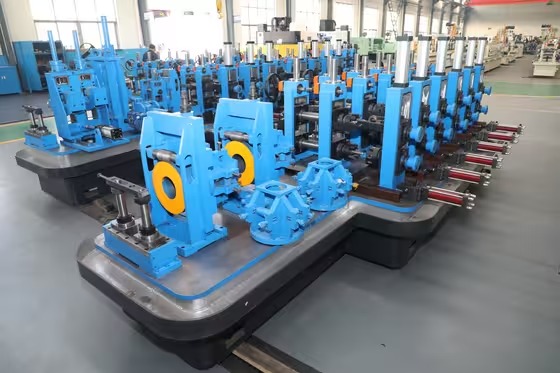

Tube mill sizing section with roller stands and drive components
Sizing stands and drive components used to control finished tube dimensions after welding.
Large-diameter tube mill line assembled inside the Zhongyue factory
A larger tube mill configuration assembled for structural and industrial pipe production.

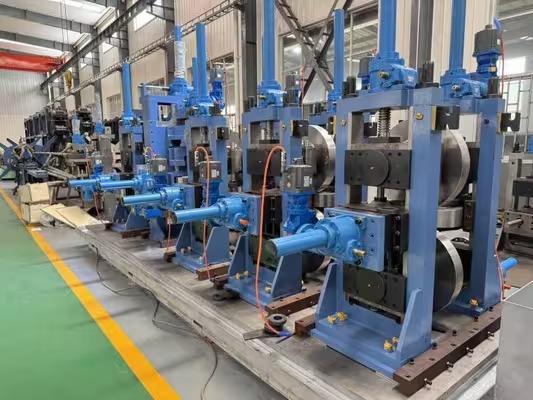

Close view of pipe mill forming stands and horizontal roll shafts
A close view of forming stands, shafts and roll positions before production commissioning.
Hydrostatic pipe testing equipment with safety enclosure in a factory workshop
Hydrostatic testing equipment can be included when the finished pipe inspection plan requires it.
